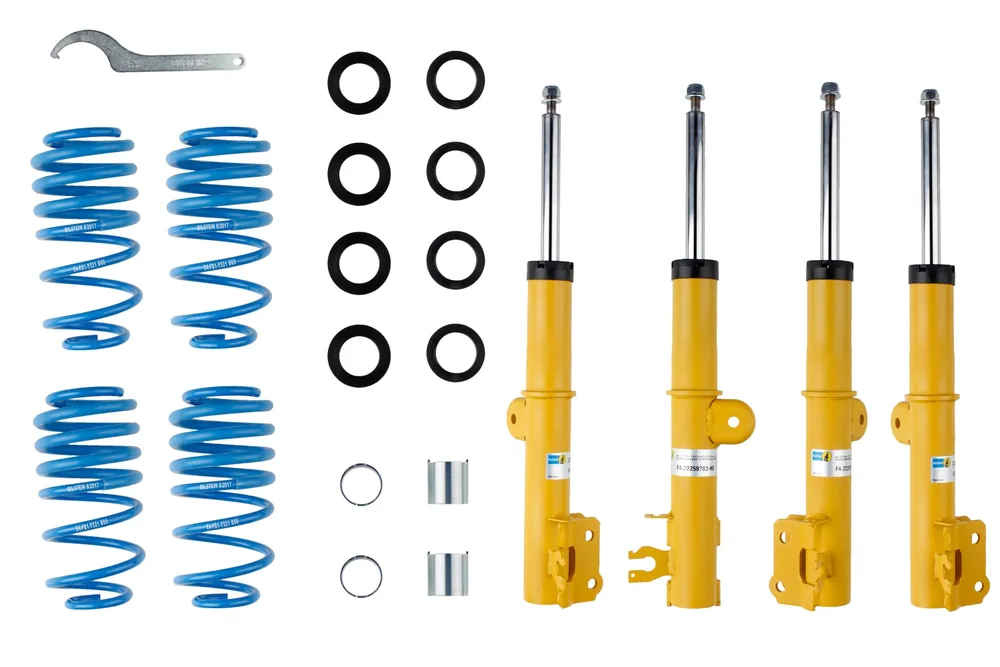

Representative product photograph. Exact hardware varies by application.

Bilstein B14 Coilover Kit - FIAT 500X (334_) / JEEP RENEGADE SUV (BU, B1) - 47-259751

Name: Bilstein B14 Coilover Kit - FIAT 500X (334_) / JEEP RENEGADE SUV (BU, B1) - 47-259751
Brand: Bilstein
SKU: 47-259751

£1,048.80 inc. VAT

Check the chassis, model years and kit specification below before ordering.

Fiat / Jeep · 500X (334_) / RENEGADE SUV (BU / B1)

Kit configurationCheck fitment with us

Delivery and final totals are calculated for your postcode at checkout.

View shortlist

Your kit, in detail.

Check these application specifications against your exact car and selected configuration.

Photographs are representative. Multiple values below cover different applications; they are not a guarantee for every vehicle. Confirm current availability and lead time with us.

Ride height: Front: 20-40 mm / Rear: 20-40 mm
Maximum front axle load: 2 application-specific values
FIAT 500X (334_): 1050 kg
JEEP RENEGADE SUV (BU, B1): 1050 kg
Maximum rear axle load: 2 application-specific values
FIAT 500X (334_): 930 kg
JEEP RENEGADE SUV (BU, B1): 930 kg
Lead time (catalogue): Contact us for current lead time

Some specifications are not listed. Check any missing detail with us.

Check the fit.

Match the chassis, years and suspension details to your car. A registration lookup cannot identify every factory option.

Kit code: 47-259751. These notes come from the current product listing. Selected configurations can have different mounting parts.

Check this application with us

Application notes

FIAT 500X (334_)

1.4, 1.6, 2.4, 1.3 D Multijet, 1.6 D Multijet 09/14– 70–138kW
Front lowering: 20-40 mm
Rear lowering: 20-40 mm
Fitment conditions and axle ratings: fixing hole pitches 58 mm; Threaded Suspension (height adjustable); Lowering ca. [mm]: 20-40 mm FA: Axle load [kg] to 1050 kg RA: Axle load [kg] to 930 kg

Choosing a note here does not change the kit in your basket or confirm fitment. Check every condition in the relevant application.

Need anything else?

Controllers, mounts and cancellation modules depend on the kit and the car. We’ll check the part numbers and anything else needed before you order.

What would you like checked?Your factory dampersAsk us to match the parts

We’ll confirm the parts, price and availability after checking your application.

Instructions for your kit.

Use the instructions supplied with 47-259751 for assembly, torque values and adjustment limits.

Request the correct instructions

Your invoice and supplied instructions record the kit you ordered. Links below show current resources, checked 2026-10-25.

For this part number

Installation instructions (PDF)47-259751 · E4-WM4-Y738A00_1 · confirm the supplied revision

Bilstein support

Manufacturer technical supportInternational support; includes the UK office Manufacturer application catalogue2020 reference catalogue; check current kit instructions

General guidance does not replace the instructions for your exact kit. Contact us before returning a part; warranty cover depends on the product, purchase and applicable terms.

Ask about warranty or servicing

Know what’s
under your car.

Bilstein B14 coilover kit, part 47-259751. Front: 20-40 mm / Rear: 20-40 mm. Check chassis, axle ratings and fitment conditions before ordering.

Product information

Bilstein B14 part 47-259751 is listed for the vehicle variants in the application table below. Match your chassis, engine, factory suspension and axle ratings to the relevant row before ordering. B14 uses threaded ride-height adjustment with vehicle-specific fixed damping. It suits drivers who want to choose the ride height without a damping-adjustment dial. Application and lowering table FIAT 500X (334_) 1.4, 1.6, 2.4, 1.3 D Multijet, 1.6 D Multijet 09/14– 70–138kW Front lowering: 20-40 mm Rear lowering: 20-40 mm Fitment conditions and axle ratings: fixing hole pitches 58 mm; Threaded Suspension (height adjustable); Lowering ca. [mm]: 20-40 mm FA: Axle load [kg] to 1050 kg RA: Axle load [kg] to 930 kg JEEP RENEGADE SUV (BU, B1) 1.4, 1.6, 2.4, 1.6 CRD 07/14– 81–137kW Front lowering: 20-40 mm Rear lowering: 20-40 mm Fitment conditions and axle ratings: Front Wheel Drive; fixing hole pitches 58 mm; Threaded Suspension (height adjustable); Lowering ca. [mm]: 20-40 mm FA: Axle load [kg] to 1050 kg RA: Axle load [kg] to 930 kg *Approximate lowering relative to the original suspension specified in the relevant row. Factory sports suspension, axle load and vehicle equipment can change the resulting drop. When several rows apply to the same model, their conditions distinguish the permitted configuration; do not select a range by model name alone. Before ordering Check the exact manufacturer part number: 47-259751 . Check the permitted axle ratings on the vehicle identification plate wherever a limit is listed. Confirm electronic damping, drivetrain and original sports-suspension options against the table. Check any additional parts, exclusions and certificate conditions in the application notes. Installation and adjustment Follow the installation instructions and approval document supplied for this part number. Keep any adjustable spring seats within the specified range. Have wheel alignment checked after fitting and check affected headlamp or driver-assistance settings in accordance with the vehicle manufacturer’s instructions. Ordering from Coilovers Direct This part is ordered from our supplier. Contact us for the current lead time, particularly if you need it for a planned installation or event. Send your registration or VIN and original suspension details if you would like us to check the application.

Brand: Bilstein
Series: B14
Vehicle Manufacturer: Fiat / Jeep
Vehicle Model: 500X (334_) / RENEGADE SUV (BU, B1)
Ride Height Adjustment: Front: 20-40 mm / Rear: 20-40 mm
Lead Time: Contact us for current lead time
Manufacturer Part Number: 47-259751

Get to know your setup.

Buying, fitting and looking after coilovers. A few useful reads while you compare this Bilstein kit.

All buying guides

Coilovers or lowering springs?

Choose around the height adjustment and damper changes your car actually needs.

Read the guide

Ride height and spring preload

Understand the two adjustments before choosing a lowering range.

Read the guide

Alignment after changing ride height

Set the intended height, check the geometry and keep a useful record of the result.

Read the guide

What spring rate tells you

Compare force and movement, read the units and choose a spring with the damper in mind.

Read the guide

Identify the parts on your coilovers

Use the exploded view to name the component, then send the kit code for an exact replacement check.

Read the guide

Wheel and tyre clearance with coilovers

A wheel diameter alone cannot confirm clearance to the spring, damper or body.

Read the guide

Know what you’re choosing.

The controls and parts explained, before you decide.

Compare Bilstein ranges

This kit: B14

Damping adjustment

Damping controls how quickly the suspension moves. A combined control changes compression and rebound together. Separate controls let you adjust them independently. More controls mean more setup choices; they do not guarantee a better ride.

Read the illustrated guide

Spring rates

A spring-rate pair normally lists front, then rear. Keep the unit shown on the kit specification: kgf/mm (often written kg/mm) and N/mm are different units. The right rate depends on the car and setup. Ask us before choosing a custom rate or changing springs.

Read the illustrated guide

Top mounts

Some kits reuse the original mounts; others include rubber or pillowball mounts. Camber adjustment depends on the mount and suspension layout. Check the exact configuration rather than assuming the representative photograph shows every included part.

Read the illustrated guide

Electronic / adaptive dampers

If your car has factory electronic damping, tell us before ordering. The kit may retain that function, require an additional compatible cancellation solution, or have a specific exclusion. The correct answer depends on the vehicle and exact kit.

Ride height and installation

Lowering ranges and required parts vary by application. Read the kit notes and use a qualified installer. Changes to ride height affect alignment, so ask your installer to check the setup after installation.

Read the illustrated guide

Parts and servicing

Identify the component before asking for a replacement. Include the kit code, serial or batch marking and affected corner. The illustration names common external parts; the exact hardware and service route depend on this kit.
