Bilstein B14 Coilover Kit for Renault Clio II 2.0 16V Sport - 54 mm Mounting - 47-087750

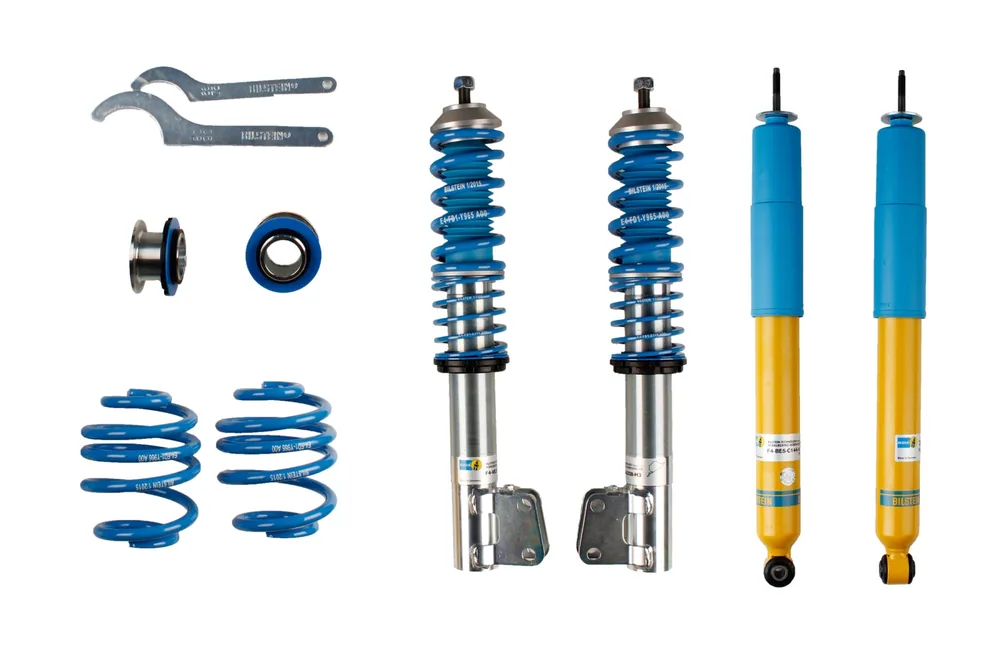

Representative product photograph. Exact hardware varies by application.

Bilstein B14 Coilover Kit for Renault Clio II 2.0 16V Sport - 54 mm Mounting - 47-087750

£1,071.60 inc. VAT

Check the chassis, model years and kit specification below before ordering.

Renault · CLIO II (BB_ / CB_)
Check fitment with us

Delivery and final totals are calculated for your postcode at checkout.

View shortlist

Your kit, in detail.

Check these application specifications against your exact car and selected configuration.

Photographs are representative. Multiple values below cover different applications; they are not a guarantee for every vehicle. Confirm current availability and lead time with us.

Damping adjustment
Fixed damping
Ride height
Front approximately 25-30 mm / rear approximately 25-30 mm
Maximum front axle load
860 kg
Maximum rear axle load
820 kg
Front fixing-hole spacing
54 mm
Lead time (catalogue)
Contact us for current lead time

Some specifications are not listed. Check any missing detail with us.

Need anything else?

Controllers, mounts and cancellation modules depend on the kit and the car. We’ll check the part numbers and anything else needed before you order.

Ask us to match the parts

We’ll confirm the parts, price and availability after checking your application.

Instructions for your kit.

Use the instructions supplied with 47-087750 for assembly, torque values and adjustment limits.

We don’t have a linked installation PDF for this kit yet. Send us the part number and serial or lot marking to request a copy.

Request the correct instructions

Your invoice and supplied instructions record the kit you ordered. Links below show current resources, checked 2026-10-25.

General guidance does not replace the instructions for your exact kit. Contact us before returning a part; warranty cover depends on the product, purchase and applicable terms.

Ask about warranty or servicing

Know what’s
under your car.

B14 for Renault Clio II 2.0 16V Sport. Front and rear lowering: 25-30 mm. Fixed damping. 54 mm front fixing-hole spacing; built up to December 2002. Check axle limits and application details below.

Product information

Bilstein B14 47-087750 is a height-adjustable suspension kit for the application below. The B14 dampers use fixed damping; there is no damping-adjustment dial. Vehicle application Clio II (BB_, CB_), 2.0 16V Sport, 124 kW, built from February 2000 through December 2002. Ride height and axle limits Front lowering: approximately 25-30 mm Rear lowering: approximately 25-30 mm Maximum front axle rating: 860 kg Maximum rear axle rating: 820 kg Lowering is relative to the specified original suspension, not an absolute ground-clearance measurement. Check the vehicle identification plate and original suspension before ordering. Fitting conditions Requires 54 mm spacing between the front mounting holes. Measure the fixing-hole spacing before ordering. For vehicles built no later than December 2002. Use the part-specific installation and approval documents. Check wheel and tyre clearance throughout the permitted adjustment range. Have wheel alignment checked after fitting. Ordering from Coilovers Direct This kit is ordered from our supplier. Contact us for the current lead time. Send your registration or VIN and original suspension details if you would like help confirming fitment.

Brand
Bilstein
Maximum Front Axle Rating
860 kg
Maximum Rear Axle Rating
820 kg
Damping Adjustment
Fixed damping
Front Fixing-Hole Spacing
54 mm
Series
B14
Vehicle Manufacturer
Renault
Vehicle Model
CLIO II (BB_, CB_)
Ride Height Adjustment
Front approximately 25-30 mm / rear approximately 25-30 mm
Lead Time
Contact us for current lead time
Manufacturer Part Number
47-087750

Get to know your setup.

Buying, fitting and looking after coilovers. A few useful reads while you compare this Bilstein kit.

All buying guides

Know what you’re choosing.

The controls and parts explained, before you decide.

Compare Bilstein ranges

This kit: B14

Damping adjustment

Damping controls how quickly the suspension moves. A combined control changes compression and rebound together. Separate controls let you adjust them independently. More controls mean more setup choices; they do not guarantee a better ride.

Read the illustrated guide
Spring rates

A spring-rate pair normally lists front, then rear. Keep the unit shown on the kit specification: kgf/mm (often written kg/mm) and N/mm are different units. The right rate depends on the car and setup. Ask us before choosing a custom rate or changing springs.

Read the illustrated guide
Top mounts

Some kits reuse the original mounts; others include rubber or pillowball mounts. Camber adjustment depends on the mount and suspension layout. Check the exact configuration rather than assuming the representative photograph shows every included part.

Read the illustrated guide
Electronic / adaptive dampers

If your car has factory electronic damping, tell us before ordering. The kit may retain that function, require an additional compatible cancellation solution, or have a specific exclusion. The correct answer depends on the vehicle and exact kit.

Ride height and installation

Lowering ranges and required parts vary by application. Read the kit notes and use a qualified installer. Changes to ride height affect alignment, so ask your installer to check the setup after installation.

Read the illustrated guide
Parts and servicing

Identify the component before asking for a replacement. Include the kit code, serial or batch marking and affected corner. The illustration names common external parts; the exact hardware and service route depend on this kit.

Read the illustrated guide
