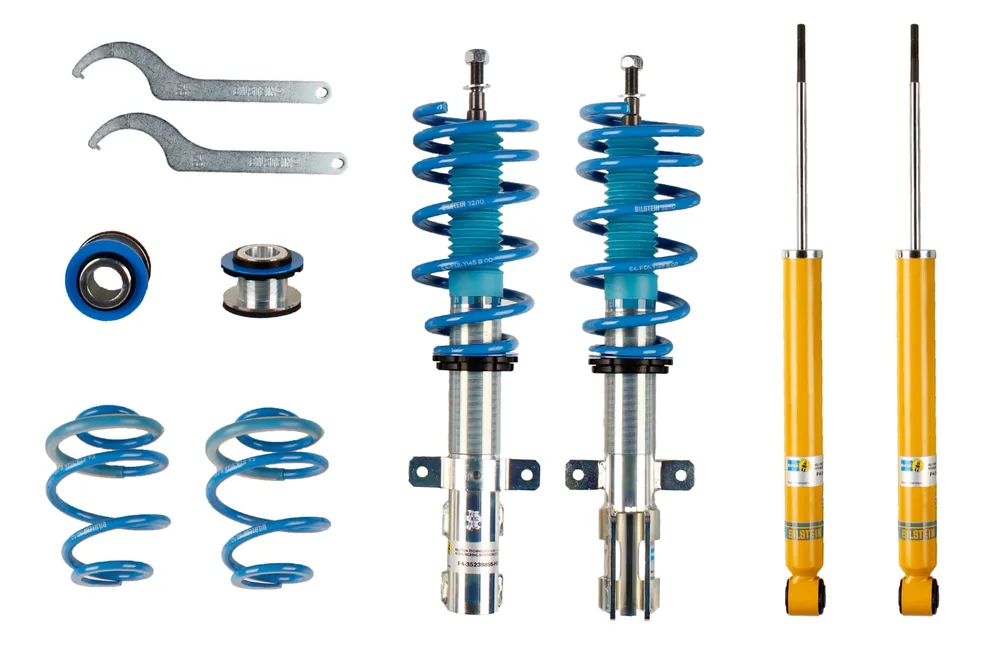

Representative product photograph. Exact hardware varies by application.
Bilstein B14 Coilover Kit - Renault Twingo II (CN0_) - 47-239883
£1,219.20 inc. VAT
Check the chassis, model years and kit specification below before ordering.
Delivery and final totals are calculated for your postcode at checkout.
Your kit, in detail.
Check these application specifications against your exact car and selected configuration.
Photographs are representative. Multiple values below cover different applications; they are not a guarantee for every vehicle. Confirm current availability and lead time with us.
- Damping adjustment
- Fixed
- Ride height
- Front approximately 20-35 mm / rear approximately 10-20 mm
- Maximum front axle load
- 850 kg
- Maximum rear axle load
- 690 kg
- Lead time (catalogue)
- Contact us for current lead time
Some specifications are not listed. Check any missing detail with us.
Need anything else?
Controllers, mounts and cancellation modules depend on the kit and the car. We’ll check the part numbers and anything else needed before you order.
We’ll confirm the parts, price and availability after checking your application.
Instructions for your kit.
Use the instructions supplied with 47-239883 for assembly, torque values and adjustment limits.
We don’t have a linked installation PDF for this kit yet. Send us the part number and serial or lot marking to request a copy.
Request the correct instructionsYour invoice and supplied instructions record the kit you ordered. Links below show current resources, checked 2026-10-25.
Bilstein support
Manufacturer technical supportInternational support; includes the UK officeManufacturer application catalogue2020 reference catalogue; check current kit instructionsGeneral guidance does not replace the instructions for your exact kit. Contact us before returning a part; warranty cover depends on the product, purchase and applicable terms.
Ask about warranty or servicingKnow what’s
under your car.
B14 suspension for listed Renault Twingo II (CN0_) variants. Lowering: front 20-35 mm / rear 10-20 mm. Maximum axle ratings: front 850 kg / rear 690 kg. Check all fitting conditions below.
Product information
Bilstein B14 47-239883 is a height-adjustable suspension kit for the listed Renault Twingo II (CN0_) applications. Match the chassis, engine, original suspension and axle ratings before ordering. B14 provides ride-height adjustment with fixed damping. There is no damping-adjustment dial. Ride height and axle limits Front lowering range: approximately 20-35 mm Rear lowering range: approximately 10-20 mm Maximum front axle rating: 850 kg Maximum rear axle rating: 690 kg Lowering is measured against the original suspension specified for the application. It is not an absolute ground-clearance figure. Original sports suspension and vehicle equipment can change the resulting drop. Vehicle application Renault Twingo II (CN0_) 1.6 RS 05/08– 98kW Fitting and adjustment conditions Follow the approval document and installation instructions for this exact part number. Set the threaded height adjusters within the permitted range. Check axle ratings on the vehicle identification plate. Follow the installation instructions, confirm wheel and tyre clearance throughout the permitted range, and have wheel alignment checked after fitting. Ordering from Coilovers Direct This kit is ordered from our supplier. Contact us for the current lead time. Send your registration or VIN and original suspension details if you would like help checking the application.
- Brand
- Bilstein
- Maximum Front Axle Rating
- 850 kg
- Maximum Rear Axle Rating
- 690 kg
- Damping Adjustment
- Fixed
- Series
- B14
- Vehicle Manufacturer
- Renault
- Vehicle Model
- TWINGO II (CN0_)
- Ride Height Adjustment
- Front approximately 20-35 mm / rear approximately 10-20 mm
- Lead Time
- Contact us for current lead time
- Manufacturer Part Number
- 47-239883
Get to know your setup.
Buying, fitting and looking after coilovers. A few useful reads while you compare this Bilstein kit.
Coilovers or lowering springs?
Choose around the height adjustment and damper changes your car actually needs.
Read the guideRide height and spring preload
Understand the two adjustments before choosing a lowering range.
Read the guideAlignment after changing ride height
Set the intended height, check the geometry and keep a useful record of the result.
Read the guideWhat spring rate tells you
Compare force and movement, read the units and choose a spring with the damper in mind.
Read the guideIdentify the parts on your coilovers
Use the exploded view to name the component, then send the kit code for an exact replacement check.
Read the guideWheel and tyre clearance with coilovers
A wheel diameter alone cannot confirm clearance to the spring, damper or body.
Read the guideKnow what you’re choosing.
The controls and parts explained, before you decide.
Compare Bilstein rangesThis kit: B14
Damping adjustment
Damping controls how quickly the suspension moves. A combined control changes compression and rebound together. Separate controls let you adjust them independently. More controls mean more setup choices; they do not guarantee a better ride.
Read the illustrated guideSpring rates
A spring-rate pair normally lists front, then rear. Keep the unit shown on the kit specification: kgf/mm (often written kg/mm) and N/mm are different units. The right rate depends on the car and setup. Ask us before choosing a custom rate or changing springs.
Read the illustrated guideTop mounts
Some kits reuse the original mounts; others include rubber or pillowball mounts. Camber adjustment depends on the mount and suspension layout. Check the exact configuration rather than assuming the representative photograph shows every included part.
Read the illustrated guideElectronic / adaptive dampers
If your car has factory electronic damping, tell us before ordering. The kit may retain that function, require an additional compatible cancellation solution, or have a specific exclusion. The correct answer depends on the vehicle and exact kit.
Ride height and installation
Lowering ranges and required parts vary by application. Read the kit notes and use a qualified installer. Changes to ride height affect alignment, so ask your installer to check the setup after installation.
Read the illustrated guideParts and servicing
Identify the component before asking for a replacement. Include the kit code, serial or batch marking and affected corner. The illustration names common external parts; the exact hardware and service route depend on this kit.
Read the illustrated guideFrom other drivers.
