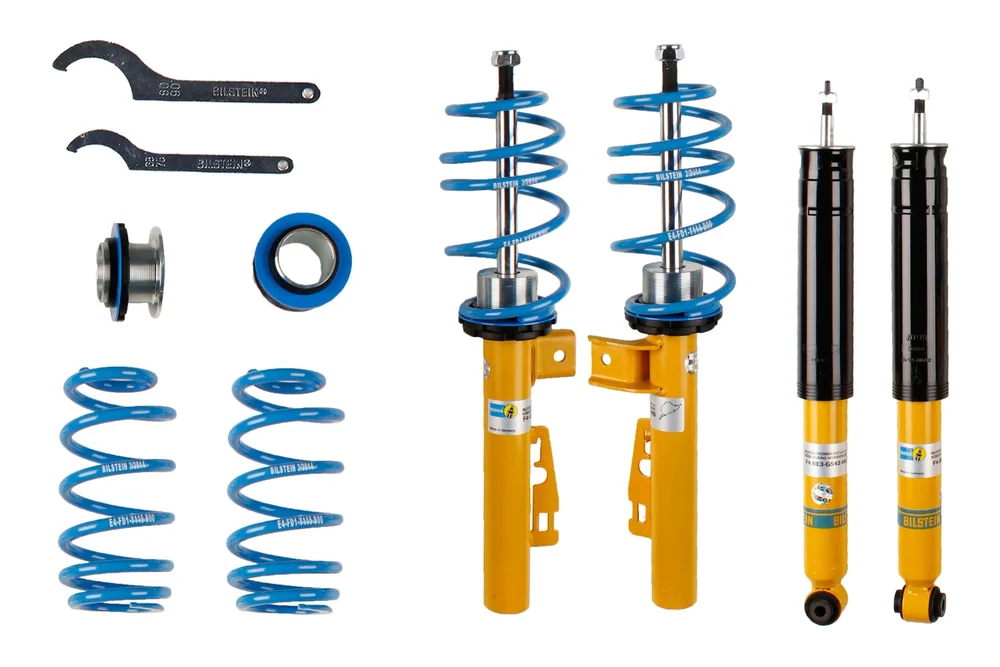

Representative product photograph. Exact hardware varies by application.

Bilstein B14 Coilover Kit - Smart Fortwo Coupe (451) / Smart Fortwo Cabrio (451) - 47-165403

Name: Bilstein B14 Coilover Kit - Smart Fortwo Coupe (451) / Smart Fortwo Cabrio (451) - 47-165403
Brand: Bilstein
SKU: 47-165403

£924.00 inc. VAT

Check the chassis, model years and kit specification below before ordering.

Smart · FORTWO Cabrio (451) / FORTWO Coupe (451)

Kit configurationCheck fitment with us

Delivery and final totals are calculated for your postcode at checkout.

View shortlist

Your kit, in detail.

Check these application specifications against your exact car and selected configuration.

Photographs are representative. Multiple values below cover different applications; they are not a guarantee for every vehicle. Confirm current availability and lead time with us.

Ride height: Front lowering approximately 10-20 mm / rear approximately 10-30 mm
Maximum front axle load: 440 kg
Maximum rear axle load: 660 kg
Lead time (catalogue): Contact us for current lead time

Some specifications are not listed. Check any missing detail with us.

Check the fit.

Match the chassis, years and suspension details to your car. A registration lookup cannot identify every factory option.

Kit code: 47-165403. These notes come from the current product listing. Selected configurations can have different mounting parts.

Check this application with us

Application notes

Smart Fortwo Coupe (451)

1.0, 1.0 Turbo, 1.0 Brabus, 1.0 Turbo Brabus, 0.8 CDi 01/07– 33–75 kW
Front lowering: approximately 10-20 mm
Rear lowering: approximately 10-30 mm
Maximum front axle rating: 440 kg
Maximum rear axle rating: 660 kg
Set the threaded height adjusters within the permitted range.
Follow the approval document and installation instructions for this exact part number.

Choosing a note here does not change the kit in your basket or confirm fitment. Check every condition in the relevant application.

Need anything else?

Controllers, mounts and cancellation modules depend on the kit and the car. We’ll check the part numbers and anything else needed before you order.

What would you like checked?Your factory dampersAsk us to match the parts

We’ll confirm the parts, price and availability after checking your application.

Instructions for your kit.

Use the instructions supplied with 47-165403 for assembly, torque values and adjustment limits.

Request the correct instructions

Your invoice and supplied instructions record the kit you ordered. Links below show current resources, checked 2026-10-25.

For this part number

Installation instructions (PDF)47-165403 · E4-WM4-Y623A00_2 · confirm the supplied revision

Bilstein support

Manufacturer technical supportInternational support; includes the UK office Manufacturer application catalogue2020 reference catalogue; check current kit instructions

General guidance does not replace the instructions for your exact kit. Contact us before returning a part; warranty cover depends on the product, purchase and applicable terms.

Ask about warranty or servicing

Know what’s
under your car.

B14 coilover kit for the listed Smart Fortwo Coupe (451) / Smart Fortwo Cabrio (451). Front/rear lowering ranges and axle limits are shown separately for each application below. Check all engine and fitting restrictions.

Product information

Bilstein B14 47-165403 is a height-adjustable coilover kit for the vehicle applications below. Fixed damping; no damping-adjustment dial. Check the engine, transmission, original suspension and axle ratings for the relevant application. Vehicle applications and specifications Smart Fortwo Coupe (451) 1.0, 1.0 Turbo, 1.0 Brabus, 1.0 Turbo Brabus, 0.8 CDi 01/07– 33–75 kW Front lowering: approximately 10-20 mm Rear lowering: approximately 10-30 mm Maximum front axle rating: 440 kg Maximum rear axle rating: 660 kg Set the threaded height adjusters within the permitted range. Follow the approval document and installation instructions for this exact part number. Smart Fortwo Cabrio (451) 1.0, 1.0 Turbo, 1.0 Brabus, 1.0 Turbo Brabus, 0.8 CDi 01/07– 33–88 kW Front lowering: approximately 10-20 mm Rear lowering: approximately 10-30 mm Maximum front axle rating: 440 kg Maximum rear axle rating: 660 kg Set the threaded height adjusters within the permitted range. Follow the approval document and installation instructions for this exact part number. Lowering figures are approximate and depend on the original suspension and equipment. Compare axle ratings with the vehicle identification plate. Installation Follow the fitting documents for this exact part number. Keep height adjustment within the approved range, confirm which original mounting components are retained, check clearances and have wheel alignment checked after installation. Ordering from Coilovers Direct This kit is ordered from our supplier. Contact us for the current lead time. Send your registration or VIN and original suspension details if you would like help checking the application.

Brand: Bilstein
Maximum Front Axle Rating: 440 kg
Maximum Rear Axle Rating: 660 kg
Kit Configuration: Front and rear coilover suspension kit
Fitting Position: Front and rear axle
Series: B14
Vehicle Manufacturer: Smart
Vehicle Model: FORTWO Cabrio (451) / FORTWO Coupe (451)
Ride Height Adjustment: Front lowering approximately 10-20 mm / rear approximately 10-30 mm
Lead Time: Contact us for current lead time
Manufacturer Part Number: 47-165403

Get to know your setup.

Buying, fitting and looking after coilovers. A few useful reads while you compare this Bilstein kit.

All buying guides

Coilovers or lowering springs?

Choose around the height adjustment and damper changes your car actually needs.

Read the guide

Ride height and spring preload

Understand the two adjustments before choosing a lowering range.

Read the guide

Alignment after changing ride height

Set the intended height, check the geometry and keep a useful record of the result.

Read the guide

What spring rate tells you

Compare force and movement, read the units and choose a spring with the damper in mind.

Read the guide

Identify the parts on your coilovers

Use the exploded view to name the component, then send the kit code for an exact replacement check.

Read the guide

Wheel and tyre clearance with coilovers

A wheel diameter alone cannot confirm clearance to the spring, damper or body.

Read the guide

Know what you’re choosing.

The controls and parts explained, before you decide.

Compare Bilstein ranges

This kit: B14

Damping adjustment

Damping controls how quickly the suspension moves. A combined control changes compression and rebound together. Separate controls let you adjust them independently. More controls mean more setup choices; they do not guarantee a better ride.

Read the illustrated guide

Spring rates

A spring-rate pair normally lists front, then rear. Keep the unit shown on the kit specification: kgf/mm (often written kg/mm) and N/mm are different units. The right rate depends on the car and setup. Ask us before choosing a custom rate or changing springs.

Read the illustrated guide

Top mounts

Some kits reuse the original mounts; others include rubber or pillowball mounts. Camber adjustment depends on the mount and suspension layout. Check the exact configuration rather than assuming the representative photograph shows every included part.

Read the illustrated guide

Electronic / adaptive dampers

If your car has factory electronic damping, tell us before ordering. The kit may retain that function, require an additional compatible cancellation solution, or have a specific exclusion. The correct answer depends on the vehicle and exact kit.

Ride height and installation

Lowering ranges and required parts vary by application. Read the kit notes and use a qualified installer. Changes to ride height affect alignment, so ask your installer to check the setup after installation.

Read the illustrated guide

Parts and servicing

Identify the component before asking for a replacement. Include the kit code, serial or batch marking and affected corner. The illustration names common external parts; the exact hardware and service route depend on this kit.

Read the illustrated guide
