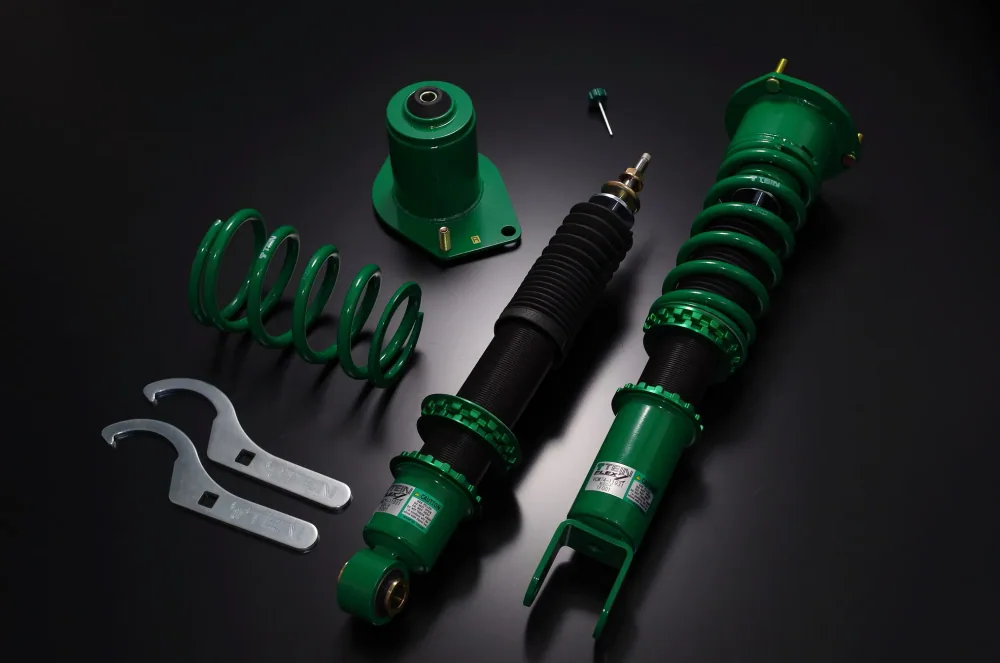

Representative product photograph. Exact hardware varies by application.

TEIN FLEX Z Coilovers for Mazda MX-5 NC 2.0 - VSM74-C1SA3

Name: TEIN FLEX Z Coilovers for Mazda MX-5 NC 2.0 - VSM74-C1SA3
Brand: TEIN
SKU: VSM74-C1SA3

£924.00 inc. VAT

Check the chassis, model years and kit specification below before ordering.

Mazda · MX-5 NC

Kit configurationCheck fitment with us

Delivery and final totals are calculated for your postcode at checkout.

View shortlist

Your kit, in detail.

Check these application specifications against your exact car and selected configuration.

Photographs are representative. Multiple values below cover different applications; they are not a guarantee for every vehicle. Confirm current availability and lead time with us.

Damper design: 16-level damping adjustable twin-tube
Spring rates: 7 kgf/mm front; 5 kgf/mm rear
Ride height: Recommended: front -45 to -25 mm; rear -40 to -20 mm

Some specifications are not listed. Check any missing detail with us.

Check the fit.

Match the chassis, years and suspension details to your car. A registration lookup cannot identify every factory option.

Kit code: VSM74-C1SA3. These notes come from the current product listing. Selected configurations can have different mounting parts.

Check this application with us TEIN catalogue for VSM74-C1SA3

Check your vehicle

TEIN has not tested this application on cars with the power-retractable hardtop. Do not assume hardtop compatibility. The verified UK listing is for the NCEC 2.0-litre application below.

Mazda MX-5 NCEC 2006-2014

Engine displacement: 2000 cc
Drive: Rear-wheel drive
Grade / application: See chassis and engine above
Recommended front height change: -45 to -25 mm
Recommended rear height change: -40 to -20 mm
Maximum front adjustable range: -60 to +21 mm
Maximum rear adjustable range: -65 to -12 mm
TEIN reference setting: -35 mm front; -30 mm rear
Spring rates: 7 kgf/mm front; 5 kgf/mm rear

The maximum adjustable range is not a recommended operating range. Use the recommended settings for this application.

Need anything else?

Controllers, mounts and cancellation modules depend on the kit and the car. We’ll check the part numbers and anything else needed before you order.

EDFC needs a controller and the correct motor kit. Some applications need further parts or cannot use EDFC. Check TEIN’s application search.

What would you like checked?Your factory dampersAsk us to match the parts

We’ll confirm the parts, price and availability after checking your application.

Instructions for your kit.

Use the instructions supplied with VSM74-C1SA3 for assembly, torque values and adjustment limits.

We don’t have a linked installation PDF for this kit yet. Send us the part number and serial or lot marking to request a copy.

Request the correct instructions

Your invoice and supplied instructions record the kit you ordered. Links below show current resources, checked 2026-10-25.

For this part number

Manufacturer application specificationVSM74-C1SA3 · TEIN UK catalogue

TEIN support

FLEX Z replacement serviceSeries information · replacement service rather than overhaul Manuals, replacement parts and warrantyUK manufacturer support EDFC application searchCheck exact vehicle, damper and required parts

General guidance does not replace the instructions for your exact kit. Contact us before returning a part; warranty cover depends on the product, purchase and applicable terms.

Ask about warranty or servicing

Know what’s
under your car.

TEIN FLEX Z VSM74-C1SA3 coilover kit. Twin-tube dampers with 16-level adjustment; spring rates 7 kgf/mm front; 5 kgf/mm rear. TEIN has not tested this application on cars with the power-retractable hardtop. Do not assume hardtop compatibility. The verified UK listing is for the NCEC 2.0-litre application below. Supplied to order. Confirm current availability and lead time with us.

Product information

The TEIN FLEX Z VSM74-C1SA3 is a vehicle-specific coilover kit for the UK-market applications listed below. It combines twin-tube dampers with 16-level adjustment of compression and rebound together. Use the recommended ride-height settings for your exact application when planning your setup. Check your vehicle TEIN has not tested this application on cars with the power-retractable hardtop. Do not assume hardtop compatibility. The verified UK listing is for the NCEC 2.0-litre application below. UK vehicle applications and ride-height settings All height figures below are changes relative to original equipment ride height. A negative figure means lowering; a positive figure means raising. TEIN distinguishes the maximum adjustable range from the recommended range established by testing. The maximum figure is not a recommended operating setting. Actual height can vary with vehicle condition and equipment. Mazda MX-5 NCEC 2006-2014 Engine displacement: 2000 cc Drive: Rear-wheel drive Grade / application: See chassis and engine above Recommended front height change: -45 to -25 mm Recommended rear height change: -40 to -20 mm Maximum front adjustable range: -60 to +21 mm Maximum rear adjustable range: -65 to -12 mm TEIN reference setting: -35 mm front; -30 mm rear Spring rates: 7 kgf/mm front; 5 kgf/mm rear Before installation Have the kit installed and aligned by a suspension specialist. Check wheel, tyre and body clearance through the full steering and suspension travel. Use the installation instructions supplied with the kit; they determine the correct assembly and permitted settings. Optional EDFC electronics are not included in this listing. Ordering and product image Available to order through our supplier network. Contact us to confirm current availability and lead time before booking installation. The supplier catalogue photograph shows selected components associated with this part number, rather than every item supplied. Application specifications: TEIN UK manufacturer catalogue for VSM74-C1SA3 . Product family: TEIN FLEX Z .

Brand: TEIN
Vehicle Manufacturer: Mazda
Vehicle Model: MX-5 NC
Series: FLEX Z
Damper Type: 16-level damping adjustable twin-tube
Ride Height Adjustment: Recommended: front -45 to -25 mm; rear -40 to -20 mm
Spring Rate: 7 kgf/mm front; 5 kgf/mm rear
Kit Configuration: Coilover suspension kit
Fitting Position: Front and Rear

Get to know your setup.

Buying, fitting and looking after coilovers. A few useful reads while you compare this TEIN kit.

All buying guides

Monotube and twin-tube dampers

Understand the internal layout without treating tube count as a ride-quality score.

Read the guide

Ride height and spring preload

Understand the two adjustments before choosing a lowering range.

Read the guide

Cars with electronic dampers

Check the original equipment before ordering a replacement kit.

Read the guide

What spring rate tells you

Compare force and movement, read the units and choose a spring with the damper in mind.

Read the guide

Identify the parts on your coilovers

Use the exploded view to name the component, then send the kit code for an exact replacement check.

Read the guide

Alignment after changing ride height

Set the intended height, check the geometry and keep a useful record of the result.

Read the guide

Know what you’re choosing.

The controls and parts explained, before you decide.

Compare TEIN ranges

This kit: FLEX Z

Damping adjustment

Damping controls how quickly the suspension moves. A combined control changes compression and rebound together. Separate controls let you adjust them independently. More controls mean more setup choices; they do not guarantee a better ride.

Read the illustrated guide

Spring rates

A spring-rate pair normally lists front, then rear. Keep the unit shown on the kit specification: kgf/mm (often written kg/mm) and N/mm are different units. The right rate depends on the car and setup. Ask us before choosing a custom rate or changing springs.

Read the illustrated guide

Top mounts

Some kits reuse the original mounts; others include rubber or pillowball mounts. Camber adjustment depends on the mount and suspension layout. Check the exact configuration rather than assuming the representative photograph shows every included part.

Read the illustrated guide

Electronic / adaptive dampers

If your car has factory electronic damping, tell us before ordering. The kit may retain that function, require an additional compatible cancellation solution, or have a specific exclusion. The correct answer depends on the vehicle and exact kit.

Ride height and installation

Lowering ranges and required parts vary by application. Read the kit notes and use a qualified installer. Changes to ride height affect alignment, so ask your installer to check the setup after installation.

Read the illustrated guide

Parts and servicing

Identify the component before asking for a replacement. Include the kit code, serial or batch marking and affected corner. The illustration names common external parts; the exact hardware and service route depend on this kit.

Read the illustrated guide
