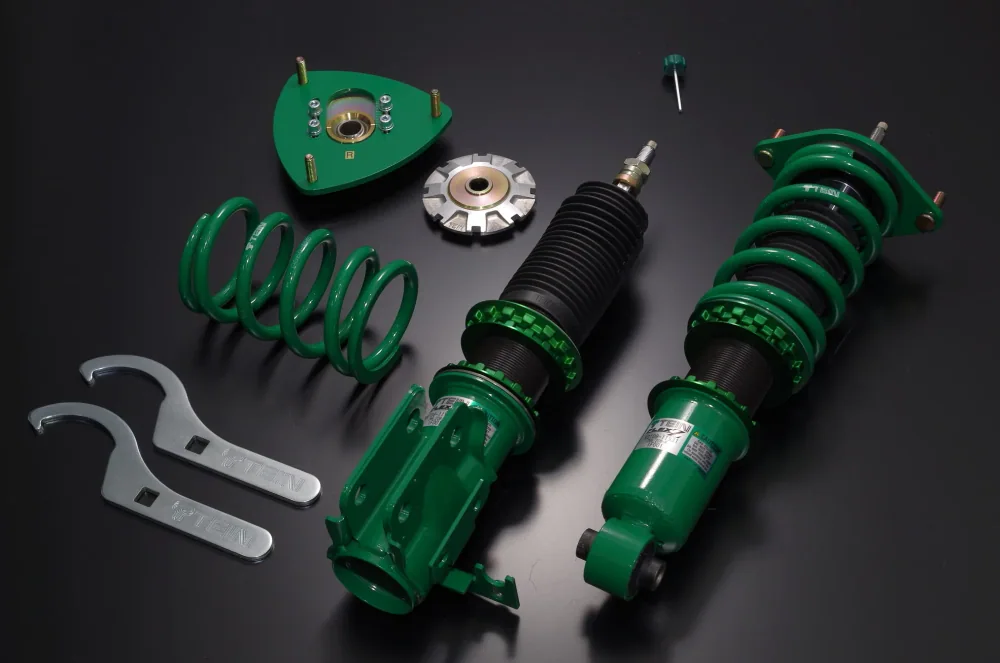

TEIN FLEX Z Coilovers for Toyota GT86 and Subaru BRZ - VSTD8-C1SA4

The TEIN FLEX Z VSTD8-C1SA4 is a vehicle-specific coilover kit for the UK-market applications listed below. It combines twin-tube dampers with 16-level adjustment of compression and rebound together. Use the recommended ride-height settings for your exact application when planning your setup. Check your vehicle Rear interior trim may need cutting or removal to prevent interference. For the 2017–2021 BRZ, TEIN additionally instructs that an EDFC motor, when fitted, is installed and checked on the front damper before installation to the vehicle; rear trim may need modification or removal if it interferes with the motor. UK vehicle applications and ride-height settings All height figures below are changes relative to original equipment ride height. A negative figure means lowering; a positive figure means raising. TEIN distinguishes the maximum adjustable range from the recommended range established by testing. The maximum figure is not a recommended operating setting. Actual height can vary with vehicle condition and equipment. Toyota GT86 ZN# 2012-2016 Engine displacement: 2000 cc Drive: Rear-wheel drive Grade / application: See chassis and engine above Recommended front height change: -35 to -15 mm Recommended rear height change: -35 to -15 mm Maximum front adjustable range: -67 to -1 mm Maximum rear adjustable range: -93 to +9 mm TEIN reference setting: -25 mm front; -25 mm rear Spring rates: 6 kgf/mm front; 6 kgf/mm rear Toyota GT86 ZN# 2017-2021 Engine displacement: 2000 cc Drive: Rear-wheel drive Grade / application: See chassis and engine above Recommended front height change: -40 to -20 mm Recommended rear height change: -40 to -20 mm Maximum front adjustable range: -65 to -1 mm Maximum rear adjustable range: -93 to +11 mm TEIN reference setting: -30 mm front; -30 mm rear Spring rates: 6 kgf/mm front; 6 kgf/mm rear Subaru BRZ ZC# 2012-2016 Engine displacement: 2000 cc Drive: Rear-wheel drive Grade / application: See chassis and engine above Recommended front height change: -40 to -20 mm Recommended rear height change: -35 to -15 mm Maximum front adjustable range: -67 to -1 mm Maximum rear adjustable range: -82 to +16 mm TEIN reference setting: -30 mm front; -25 mm rear Spring rates: 6 kgf/mm front; 6 kgf/mm rear Subaru BRZ ZC# 2017-2021 Engine displacement: 2000 cc Drive: Rear-wheel drive Grade / application: See chassis and engine above Recommended front height change: -40 to -20 mm Recommended rear height change: -35 to -15 mm Maximum front adjustable range: -65 to -1 mm Maximum rear adjustable range: -88 to +16 mm TEIN reference setting: -30 mm front; -25 mm rear Spring rates: 6 kgf/mm front; 6 kgf/mm rear Before installation Have the kit installed and aligned by a suspension specialist. Check wheel, tyre and body clearance through the full steering and suspension travel. Use the installation instructions supplied with the kit; they determine the correct assembly and permitted settings. Optional EDFC electronics are not included in this listing. Ordering and product image Available to order through our supplier network. Contact us to confirm current availability and lead time before booking installation. The supplier catalogue photograph shows selected components associated with this part number, rather than every item supplied. Application specifications: TEIN UK manufacturer catalogue for VSTD8-C1SA4 . Product family: TEIN FLEX Z .
