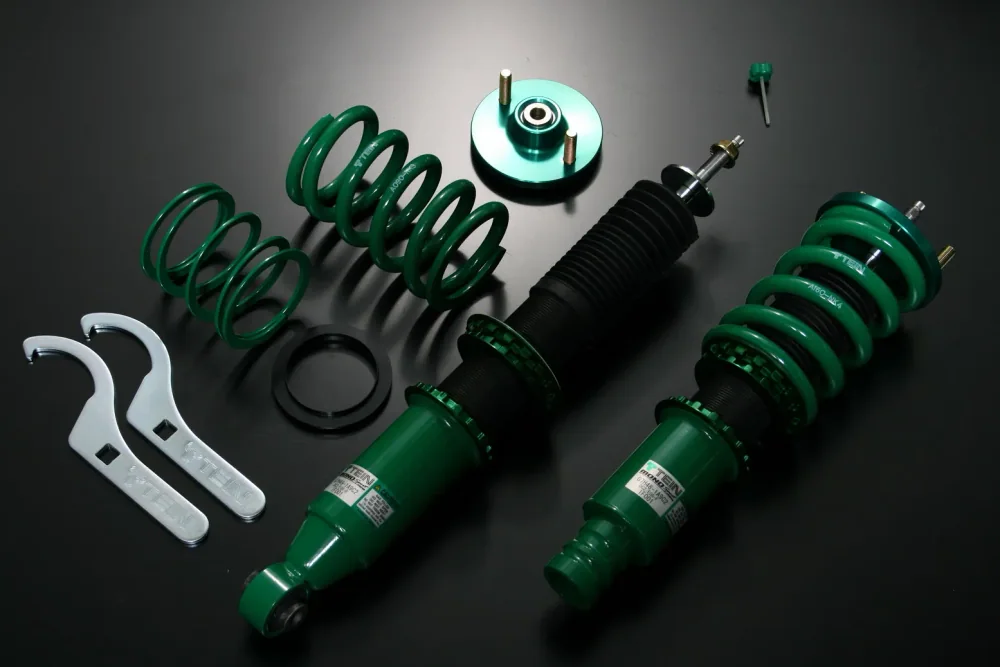

TEIN MONO SPORT Coilovers for Honda Civic EG and Integra Type R DB8/DC2 - GSH48-71SS1

The TEIN MONO SPORT GSH48-71SS1 is a vehicle-specific coilover kit for the UK-market applications listed below. It combines monotube dampers with 16-level adjustment of compression and rebound together. Use the recommended ride-height settings for your exact application when planning your setup. Check your vehicle For rear bottom eye-bush mounting only. Reuse the front brake bracket from the original shock absorber. UK vehicle applications and ride-height settings All height figures below are changes relative to original equipment ride height. A negative figure means lowering; a positive figure means raising. TEIN distinguishes the maximum adjustable range from the recommended range established by testing. The maximum figure is not a recommended operating setting. Actual height can vary with vehicle condition and equipment. Honda INTEGRA DB8 1997-2001 Engine displacement: 1800 cc Drive: Front-wheel drive Grade / application: TYPE-R RR EYE TYPE BRACKET MODEL ONLY Recommended front height change: -40 to -20 mm Recommended rear height change: -30 to -10 mm Maximum front adjustable range: -87 to +28 mm Maximum rear adjustable range: -80 to +61 mm TEIN reference setting: -30 mm front; -20 mm rear Spring rates: 16 kgf/mm front; 9 kgf/mm rear Honda INTEGRA DC2 1997-2001 Engine displacement: 1800 cc Drive: Front-wheel drive Grade / application: TYPE-R RR EYE TYPE BRACKET MODEL ONLY Recommended front height change: -45 to -25 mm Recommended rear height change: -45 to -25 mm Maximum front adjustable range: -92 to +23 mm Maximum rear adjustable range: -95 to +46 mm TEIN reference setting: -35 mm front; -35 mm rear Spring rates: 16 kgf/mm front; 9 kgf/mm rear Honda CIVIC EG 1992-1995 Engine displacement: 1300/1500/1600 cc Drive: Front-wheel drive Grade / application: RR EYE TYPE BRACKET MODEL ONLY Recommended front height change: -50 to -30 mm Recommended rear height change: -50 to -30 mm Maximum front adjustable range: -97 to +18 mm Maximum rear adjustable range: -100 to +41 mm TEIN reference setting: -40 mm front; -40 mm rear Spring rates: 16 kgf/mm front; 9 kgf/mm rear Before installation Have the kit installed and aligned by a suspension specialist. Check wheel, tyre and body clearance through the full steering and suspension travel. Use the installation instructions supplied with the kit; they determine the correct assembly and permitted settings. Optional EDFC electronics are not included in this listing. Ordering and product image Available to order through our supplier network. Contact us to confirm current availability and lead time before booking installation. The supplier catalogue photograph shows selected components associated with this part number, rather than every item supplied. Application specifications: TEIN UK manufacturer catalogue for GSH48-71SS1 . Product family: TEIN MONO SPORT .
