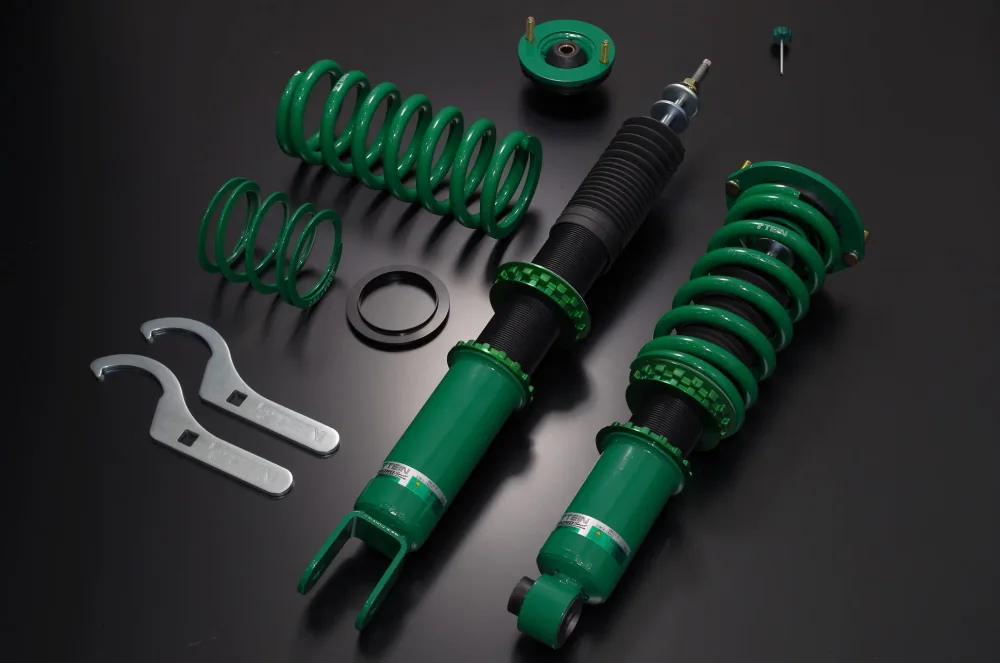

Representative product photograph. Exact hardware varies by application.

TEIN MONO SPORT Coilovers for Nissan Skyline BNR32 - GSN14-71SS3

Name: TEIN MONO SPORT Coilovers for Nissan Skyline BNR32 - GSN14-71SS3
Brand: TEIN
SKU: GSN14-71SS3

£1,500.00 inc. VAT

Check the chassis, model years and kit specification below before ordering.

Nissan · SKYLINE BNR32

Kit configurationCheck fitment with us

Delivery and final totals are calculated for your postcode at checkout.

View shortlist

Your kit, in detail.

Check these application specifications against your exact car and selected configuration.

Photographs are representative. Multiple values below cover different applications; they are not a guarantee for every vehicle. Confirm current availability and lead time with us.

Damper design: 16-level damping adjustable monotube
Spring rates: 10 kgf/mm front; 8 kgf/mm rear
Top mounts: Front: Rubber upper mount; rear: Rubber upper mount
Ride height: BNR32 1989-1994: Recommended: front -55 to -35 mm; rear -45 to -25 mm

Some specifications are not listed. Check any missing detail with us.

Check the fit.

Match the chassis, years and suspension details to your car. A registration lookup cannot identify every factory option.

Kit code: GSN14-71SS3. These notes come from the current product listing. Selected configurations can have different mounting parts.

Check this application with us TEIN catalogue for GSN14-71SS3

Application notes

Vehicle applications and ride-height settings

Height changes are relative to original equipment ride height: negative values mean lowering and positive values mean raising. Use the recommended range for your exact vehicle. The maximum adjustment range describes mechanical travel and is not a recommended operating setting. Actual height varies with vehicle condition and equipment.

Choosing a note here does not change the kit in your basket or confirm fitment. Check every condition in the relevant application.

Need anything else?

Controllers, mounts and cancellation modules depend on the kit and the car. We’ll check the part numbers and anything else needed before you order.

EDFC needs a controller and the correct motor kit. Some applications need further parts or cannot use EDFC. Check TEIN’s application search.

What would you like checked?Your factory dampersAsk us to match the parts

We’ll confirm the parts, price and availability after checking your application.

Instructions for your kit.

Use the instructions supplied with GSN14-71SS3 for assembly, torque values and adjustment limits.

We don’t have a linked installation PDF for this kit yet. Send us the part number and serial or lot marking to request a copy.

Request the correct instructions

Your invoice and supplied instructions record the kit you ordered. Links below show current resources, checked 2026-10-25.

For this part number

Manufacturer application specificationGSN14-71SS3 · TEIN UK catalogue

TEIN support

Manuals, replacement parts and warrantyUK manufacturer support EDFC application searchCheck exact vehicle, damper and required parts

General guidance does not replace the instructions for your exact kit. Contact us before returning a part; warranty cover depends on the product, purchase and applicable terms.

Ask about warranty or servicing

Know what’s
under your car.

UK-market applications only. Match the chassis, engine, trim and production dates shown below. Other-market imports require separate confirmation. TEIN MONO SPORT GSN14-71SS3 for Nissan Skyline BNR32. 16-level damping adjustment. Check the detailed application and ride-height table below. Supplied to order. Contact us for availability and lead time.

Product information

TEIN MONO SPORT combines monotube dampers with 16-level adjustment of compression and rebound together. This GSN14-71SS3 kit is listed for the specific applications below. Match your chassis, engine and model year before ordering. Vehicle market: UK-market applications only. Match the chassis, engine, trim and production dates shown below. Other-market imports require separate confirmation. Vehicle applications and ride-height settings Height changes are relative to original equipment ride height: negative values mean lowering and positive values mean raising. Use the recommended range for your exact vehicle. The maximum adjustment range describes mechanical travel and is not a recommended operating setting. Actual height varies with vehicle condition and equipment. Nissan SKYLINE BNR32 1989-1994 — UK-market Original vehicle market: UK-market Engine displacement: 2600 cc Drive: Four-wheel drive Grade / application: GT-R Recommended front height change: -55 to -35 mm Recommended rear height change: -45 to -25 mm Maximum front adjustable range: -85 to -12 mm Maximum rear adjustable range: -98 to -7 mm TEIN reference setting: -45 mm front; -35 mm rear Spring rates: 10 kgf/mm front; 8 kgf/mm rear Upper mounts: Front: Rubber upper mount; rear: Rubber upper mount Full-length ride-height adjustment: Front and rear: supported by TEIN for this application Optional EDFC compatibility: Confirmed by TEIN for this application; controller and required accessories sold separately Installation and ordering Use a suspension specialist for installation and wheel alignment. Follow the supplied instructions and check tyre, body and suspension clearance throughout steering and suspension travel. Optional EDFC electronics are sold separately. Compatibility depends on the specific application; check the application entry above. Supplied to order. Contact us for current availability and lead time before booking installation. Product photograph This is a representative TEIN MONO SPORT range photograph. The pictured mounting hardware and layout may differ from this vehicle-specific kit. Select by part number and the application specification, not the photograph. Application data: TEIN UK catalogue for GSN14-71SS3 .

Brand: TEIN
Vehicle Manufacturer: Nissan
Vehicle Model: SKYLINE BNR32
Series: MONO SPORT
Damper Type: 16-level damping adjustable monotube
Top Mount Type: Front: Rubber upper mount; rear: Rubber upper mount
Ride Height Adjustment: BNR32 1989-1994: Recommended: front -55 to -35 mm; rear -45 to -25 mm
Spring Rate: 10 kgf/mm front; 8 kgf/mm rear
Kit Configuration: Coilover suspension kit
Fitting Position: Front and Rear

Get to know your setup.

Buying, fitting and looking after coilovers. A few useful reads while you compare this TEIN kit.

All buying guides

Monotube and twin-tube dampers

Understand the internal layout without treating tube count as a ride-quality score.

Read the guide

Ride height and spring preload

Understand the two adjustments before choosing a lowering range.

Read the guide

Cars with electronic dampers

Check the original equipment before ordering a replacement kit.

Read the guide

What spring rate tells you

Compare force and movement, read the units and choose a spring with the damper in mind.

Read the guide

Identify the parts on your coilovers

Use the exploded view to name the component, then send the kit code for an exact replacement check.

Read the guide

Alignment after changing ride height

Set the intended height, check the geometry and keep a useful record of the result.

Read the guide

Know what you’re choosing.

The controls and parts explained, before you decide.

Compare TEIN ranges

This kit: MONO SPORT

Damping adjustment

Damping controls how quickly the suspension moves. A combined control changes compression and rebound together. Separate controls let you adjust them independently. More controls mean more setup choices; they do not guarantee a better ride.

Read the illustrated guide

Spring rates

A spring-rate pair normally lists front, then rear. Keep the unit shown on the kit specification: kgf/mm (often written kg/mm) and N/mm are different units. The right rate depends on the car and setup. Ask us before choosing a custom rate or changing springs.

Read the illustrated guide

Top mounts

Some kits reuse the original mounts; others include rubber or pillowball mounts. Camber adjustment depends on the mount and suspension layout. Check the exact configuration rather than assuming the representative photograph shows every included part.

Read the illustrated guide

Electronic / adaptive dampers

If your car has factory electronic damping, tell us before ordering. The kit may retain that function, require an additional compatible cancellation solution, or have a specific exclusion. The correct answer depends on the vehicle and exact kit.

Ride height and installation

Lowering ranges and required parts vary by application. Read the kit notes and use a qualified installer. Changes to ride height affect alignment, so ask your installer to check the setup after installation.

Read the illustrated guide

Parts and servicing

Identify the component before asking for a replacement. Include the kit code, serial or batch marking and affected corner. The illustration names common external parts; the exact hardware and service route depend on this kit.

Read the illustrated guide

Kit resources and aftercare Illustrated buying guides Check this kit with us Ask about a replacement part
